Hot! Up flow pressure screen / single drum pressure screen

Product Categories

Hengbon Industrial Co.,Ltd

Contact Now

Place of Origin : China

Brand Name : HENGBON

Certification : ISO, CE

Model Number : Up flow pressure screen / single drum pressure screen

MOQ : Min.Order Quantity: 1 Set/Sets

Price : Negotiation

Packaging Details : Packaging Details: packed in wooden cases

Delivery Time : 15days

Payment Terms : TT,LC

Supply Ability : 10sets per months

Condition : New

Warranty : 12 months

After-sales Service Provided : Engineers available to service machinery overseas

Contact Now

1.up-flow structure
2.low energy consumption
3.good quality
4.ISO 9001:2000 certification test

Application

To screen roughly or finely waste paper pulp and to select pulp before paper-making machine.

In the machine the up-flow structure is applied ,where pulp is entered from the bottom,weight

dregs are discharged from the bottom and light dregs are discharged from the top.

Feature

The equipment in the recycled paper pulp in the characteristics of UV-flow design for impurities

structure and wide application, has the incomparable good working performance and reliability,

it is all sorts of pressure screen and used in the recycled pulp processing the upgrading of products.

Main specification

type	UV-0.5	UV-1.2	UV-2.0	UV-3.0	UV-4.0	UV-5.0
area of screen(m²)	0.5	1.2	2.0	3.0	4.0	5.0
concentration of input and output pulp(%)	0.2-5.0
size of screen grap(mm)	0.15-0.55
size of screen hole(mm)	1.2-5.0
product capacity(t/d)	20-30	40-60	80-100	100-250	160-450	200-500
equipping power(Kw)	22/37	45/75	75/110	90/132	160/20	185/315

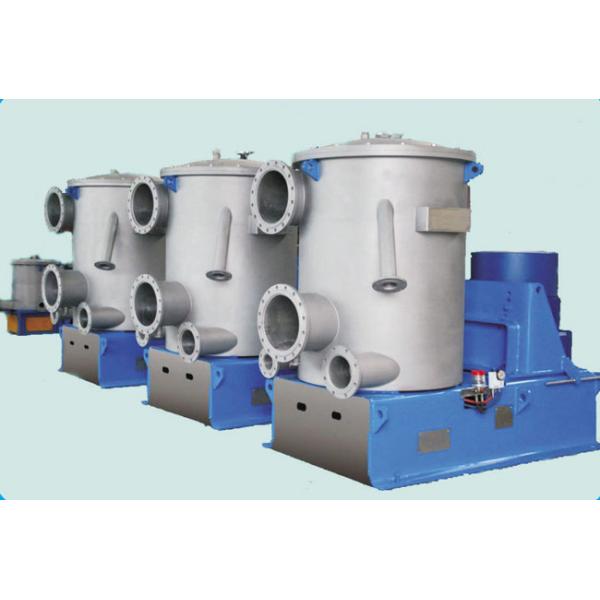

Hot! Up flow pressure screen / single drum pressure screen Images
