Place of Origin : China
Brand Name : HENGBON
Certification : ISO, CE
Model Number : Outflow pressure screen in pulper making production line
Motor power (Kw) : 7.5-110KW
Material : all parts contact with pulp is stainless steel
Colour : as customers' requirements
MOQ : Min.Order Quantity: 1 Set/Sets
Price : Negotiation
Packaging Details : Packaging Details: packed in wooden cases
Delivery Time : 15days
Payment Terms : TT,LC
Supply Ability : 10sets per months
Condition : New
Warranty : 12 months
After-sales Service Provided : Engineers available to service machinery overseas
Installation : Engineer available

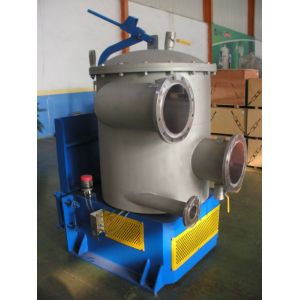

JS series outflow pressure screen
Application:
It can be a coarse screen or fine screen for all kinds of pulp and different screening process.
Design feature:
Good adaptability, high production capacity.
High efficiency, lower energy consumption, lower operation cost.
Convenient and reliable operation; easy maintenance.
Main technical data:
Model | JS0.3 | JS0.5 | JS0.8 | JS1.0 | JS1.5 | JS2.0 | JS2.5 | JS3 | JS4 |
Screen area(m²) | 0.3 | 0.5 | 0.8 | 1 | 1.5 | 2 | 2.5 | 3 | 4 |
Inlet consistency(%) | 0.2~3.0 | ||||||||
Screen slot size(mm) | Φ1.2~Φ2.5 | ||||||||
Screen cut size(mm) | 0.10~0.35 | ||||||||
Capacity of Slot-type(t/d) | 15~30 | 25~50 | 35~75 | 50~100 | 75~150 | 100~200 | 125~250 | 150~300 | 200~400 |
Capacity of cut-type(t/d) | 6~25 | 10~40 | 15~60 | 20~80 | 30~120 | 40~160 | 50~200 | 60~240 | 80~300 |
Power(kw) | 11~22 | 15~30 | 22~45 | 30~55 | 37~75 | 45~90 | 75~160 | 90~185 | 132~250 |
|
|
JS series outflow pressure screen Images |
